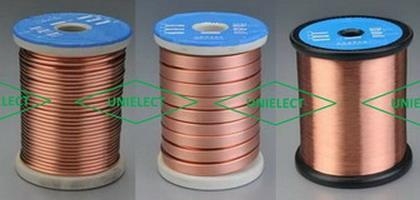

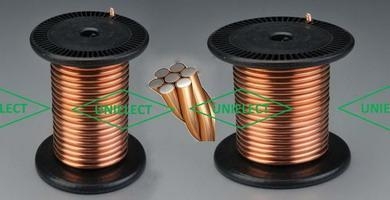

Copper Clad Aluminum Wire (CCA Wire, CCAM Wire)
Copper Clad Aluminum Wire Summary & Specification:
|
Product Spec.
|
Copper layer(volume ratio%)
|
Copper layer (quality ratio%)
|
Density
(g/cm3)
|
DC Resistivity
(Ωmm2/m)
|
DC Conductivity (%IACS)
|
|
CCA-8%
|
8
|
22
|
2.85
|
0.047
|
50
|
|
CCA-10%
|
10
|
30
|
3.32
|
0.02743
|
63
|
|
CCA-15%
|
15
|
40
|
3.63
|
0.02676
|
65
|
Physical & Mechanical Properties of Copper Clad Aluminum Wire (CCA Wire, CCAM Wire)
|
Size
(mm)
|
Section
(mm2)
|
Copper Thickness
(mm)
|
Unit Weight
(kg/km)
|
Unit Resistance
(Ω/km)20℃
|
CCA Tensile Strength (Mpa)
|
CCA Elongation(%)
|
|
CCA10%
|
CCA15%
|
CCA10%
|
CCA15%
|
Copper
|
CCA10%
|
CCA15%
|
Copper
|
A
|
H
|
A
|
H
|
|
6.00
|
28.26
|
0.105
|
0.150
|
93.82
|
102.58
|
251.20
|
0.97
|
0.95
|
0.61
|
138
|
152
|
15
|
1.5
|
|
5.15
|
20.82
|
0.090
|
0.129
|
69.12
|
75.58
|
185.09
|
1.32
|
1.29
|
0.83
|
138
|
152
|
15
|
1.5
|
|
5.08
|
20.26
|
0.089
|
0.127
|
67.26
|
73.54
|
180.11
|
1.35
|
1.32
|
0.85
|
138
|
152
|
15
|
1.5
|
|
4.97
|
19.39
|
0.087
|
0.124
|
64.37
|
70.39
|
172.57
|
1.41
|
1.38
|
0.89
|
138
|
152
|
15
|
1.5
|
|
4.90
|
18.85
|
0.086
|
0.123
|
62.58
|
68.42
|
167.75
|
1.46
|
1.42
|
0.91
|
138
|
152
|
15
|
1.5
|
|
4.85
|
18.47
|
0.085
|
0.121
|
61.32
|
67.03
|
164.34
|
1.49
|
1.45
|
0.93
|
138
|
152
|
15
|
1.5
|
|
4.80
|
18.09
|
0.084
|
0.120
|
60.06
|
65.65
|
160.97
|
1.52
|
1.48
|
0.95
|
138
|
152
|
15
|
1.5
|
|
4.50
|
15.90
|
0.079
|
0.113
|
52.79
|
57.70
|
141.47
|
1.73
|
1.68
|
1.08
|
138
|
159
|
15
|
1.5
|
|
4.00
|
12.56
|
0.070
|
0.100
|
41.70
|
45.59
|
111.78
|
2.18
|
2.13
|
1.37
|
138
|
166
|
15
|
1.5
|
|
3.86
|
11.70
|
0.068
|
0.097
|
38.84
|
42.46
|
104.69
|
2.35
|
2.29
|
1.47
|
138
|
166
|
15
|
1.5
|
|
3.60
|
10.17
|
0.063
|
0.090
|
33.76
|
36.93
|
90.55
|
2.70
|
2.63
|
1.69
|
138
|
172
|
15
|
1.5
|
|
3.50
|
9.616
|
0.061
|
0.088
|
31.93
|
34.91
|
85.58
|
2.85
|
2.78
|
1.79
|
138
|
172
|
15
|
1.5
|
|
3.38
|
8.988
|
0.059
|
0.085
|
29.77
|
32.55
|
79.82
|
3.05
|
2.98
|
1.92
|
138
|
172
|
15
|
1.5
|
|
3.20
|
8.038
|
0.056
|
0.080
|
26.69
|
29.18
|
71.54
|
3.41
|
3.33
|
2.14
|
138
|
179
|
15
|
1.0
|
|
3.00
|
7.065
|
0.053
|
0.075
|
23.45
|
25.65
|
62.88
|
3.88
|
3.79
|
2.44
|
138
|
179
|
15
|
1.0
|
|
2.85
|
6.376
|
0.050
|
0.071
|
21.17
|
23.15
|
56.75
|
4.30
|
4.20
|
2.70
|
138
|
186
|
15
|
1.0
|
|
2.80
|
6.154
|
0.049
|
0.070
|
20.43
|
22.34
|
54.77
|
4.46
|
4.35
|
2.80
|
138
|
186
|
15
|
1.0
|
|
2.77
|
6.023
|
0.046
|
0.069
|
19.88
|
21.86
|
53.61
|
4.55
|
4.44
|
2.86
|
138
|
186
|
15
|
1.0
|
|
2.50
|
4.906
|
0.044
|
0.063
|
16.29
|
17.81
|
43.66
|
5.59
|
5.54
|
3.51
|
138
|
193
|
15
|
1.0
|
|
2.30
|
4.153
|
0.040
|
0.058
|
13.97
|
15.08
|
36.96
|
6.61
|
6.44
|
4.15
|
138
|
200
|
15
|
1.0
|
|
2.20
|
3.799
|
0.0385
|
0.055
|
12.61
|
13.79
|
33.81
|
7.22
|
7.04
|
4.54
|
138
|
200
|
15
|
1.0
|
|
2.18
|
3.730
|
0.0382
|
0.054
|
12.39
|
13.54
|
33.20
|
7.35
|
7.17
|
4.62
|
138
|
200
|
15
|
1.0
|
|
2.15
|
3.629
|
0.0377
|
0.053
|
12.05
|
13.17
|
32.30
|
7.56
|
7.37
|
4.75
|
138
|
200
|
15
|
1.0
|
|
2.05
|
3.299
|
0.036
|
0.051
|
10.95
|
11.98
|
29.36
|
8.31
|
8.11
|
5.23
|
138
|
205
|
15
|
1.0
|
|
2.00
|
3.140
|
0.035
|
0.050
|
10.42
|
11.40
|
27.95
|
8.74
|
8.52
|
5.49
|
138
|
205
|
15
|
1.0
|
|
1.95
|
2.985
|
0.034
|
0.049
|
9.910
|
10.84
|
26.57
|
9.19
|
8.96
|
5.78
|
138
|
205
|
15
|
1.0
|
|
1.81
|
2.572
|
0.032
|
0.045
|
8.539
|
9.34
|
22.89
|
10.67
|
10.4
|
6.70
|
138
|
205
|
15
|
1.0
|
|
1.70
|
2.269
|
0.030
|
0.043
|
7.533
|
8.24
|
20.19
|
12.09
|
11.8
|
7.60
|
138
|
205
|
15
|
1.0
|
|
1.63
|
2.086
|
0.0289
|
0.041
|
6.926
|
7.57
|
18.57
|
13.15
|
12.8
|
8.27
|
138
|
205
|
15
|
1.0
|
|
1.50
|
1.766
|
0.026
|
0.038
|
5.863
|
6.41
|
15.72
|
15.53
|
15.2
|
9.76
|
138
|
205
|
15
|
1.0
|
|
1.30
|
1.327
|
0.023
|
0.035
|
4.406
|
4.82
|
11.81
|
20.68
|
20.2
|
13.0
|
138
|
205
|
15
|
1.0
|
|
1.02
|
0.817
|
0.018
|
0.026
|
2.712
|
2.97
|
7.27
|
33.59
|
32.8
|
21.1
|
138
|
205
|
15
|
1.0
|
|
0.95
|
0.708
|
0.017
|
0.024
|
2.350
|
2.57
|
6.30
|
38.72
|
37.8
|
24.3
|
138
|
205
|
15
|
1.0
|
|
0.81
|
0.515
|
0.014
|
0.020
|
1.710
|
1.87
|
4.58
|
53..26
|
52.0
|
33.5
|
138
|
205
|
15
|
1.0
|
|
0.75
|
0.442
|
0.013
|
0.019
|
1.467
|
1.60
|
3.93
|
62.12
|
60.6
|
39.0
|
138
|
205
|
15
|
1.0
|
|
0.63
|
0.316
|
0.011
|
0.016
|
1.049
|
1.75
|
2.81
|
88.04
|
85.0
|
55.3
|
138
|
205
|
15
|
1.0
|
|
0.50
|
0.196
|
0.009
|
0.013
|
0.651
|
0.71
|
1.74
|
139.77
|
135
|
87.9
|
172
|
205
|
10
|
1.0
|
|
0.30
|
0.071
|
0.005
|
0.008
|
0.236
|
0.258
|
0.632
|
388.25
|
379
|
244
|
172
|
205
|
10
|
1.0
|
|
0.10
|
0.008
|
0.002
|
0.003
|
0.027
|
0.028
|
0.071
|
3494
|
3409
|
2196
|
172
|
205
|
5
|
1.0
|

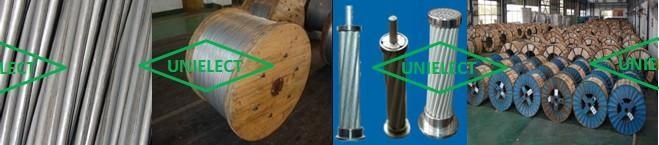

Copper Clad Street Wire (CCS Wire)
The physical characteristic of copper clad steel wire (CCS wire ):
|
Products
|
Copper Volume Rate
（%）
|
Copper Weight Rate（%）
|
Density
（g/cm3）
|
Max. Resistance
(Ω.mm2/m 20℃
|
Min. Tensile Strength（Mpa）
|
|
A
|
H
|
|
21%IACS
|
13.6
|
15.2
|
7.99
|
0.08210
|
400
|
825
|
|
30%IACS
|
21.3
|
23.6
|
8.02
|
0.05747
|
380
|
760
|
|
40%IACS
|
32.6
|
35.6
|
8.15
|
0.04310
|
350
|
700
|
Size：0.09mm--2.4mm
Conductivity:15%--40%
Tensile Strength:260Mpa--2500Mpa
Physical & Mechanical Properties of Copper Clad Steel(CCS)
CCS15%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Thickness
|
Error Margin
|
/km
|
|
1.628
|
±0.015
|
0.037
|
+0.04
-0.01
|
45.17
|
|
1.45
|
±0.015
|
0.033
|
+0.04
-0.01
|
57.14
|
|
1.29
|
±0.0127
|
0.030
|
+0.04
-0.01
|
93.02
|
|
1.151
|
±0.0127
|
0.028
|
+0.04
-0.01
|
90.74
|
|
1.024
|
±0.001
|
0.025
|
+0.03
-0.01
|
120
|
|
0.813
|
±0.0076
|
0.023
|
+0.026
-0.008
|
182.9
|
|
0.724
|
±0.0076
|
0.021
|
+0.023
-0.007
|
231.48
|
|
0.643
|
±0.0076
|
0.019
|
+0.02
-0.006
|
286.63
|
|
0.574
|
±0.0076
|
0.017
|
+0.018
-0.005
|
365.68
|
|
0.511
|
±0.0076
|
0.015
|
+0.016
-0.004
|
463.56
|
|
Tensile Strength(MPa) --- Hard drawn(min) 827MPa , Annealed(max) 338MPa
|
|
Elongation (%) --- Hard drawn(min) 1.5% , Annealed(min) 8%
|
CCS18%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Thickness
|
Error Margin
|
/km
|
|
1.628
|
±0.015
|
0.037
|
+0.04
-0.01
|
45.17
|
|
1.45
|
±0.015
|
0.033
|
+0.04
-0.01
|
57.14
|
|
1.29
|
±0.0127
|
0.030
|
+0.04
-0.01
|
93.02
|
|
1.151
|
±0.0127
|
0.028
|
+0.04
-0.01
|
90.74
|
|
1.024
|
±0.001
|
0.025
|
+0.03
-0.01
|
120
|
|
0.813
|
±0.0076
|
0.023
|
+0.026
-0.008
|
182.9
|
|
0.724
|
±0.0076
|
0.021
|
+0.023
-0.007
|
231.48
|
|
0.643
|
±0.0076
|
0.019
|
+0.02
-0.006
|
286.63
|
|
0.574
|
±0.0076
|
0.017
|
+0.018
-0.005
|
365.68
|
|
0.511
|
±0.0076
|
0.015
|
+0.016
-0.004
|
463.56
|
|
Tensile Strength(MPa) --- Hard drawn(min) 827MPa , Annealed(max) 380MPa
|
|
Elongation (%) --- Hard drawn(min) 1.5% , Annealed(min) 8%
|
CCS21%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Min Thickness(mm)
|
/km
|
|
1.67
|
±0.015
|
0.0249×2
|
≤37.5
|
|
1.628
|
±0.015
|
0.0243×2
|
≤40
|
|
1.45
|
±0.015
|
0.0218×2
|
≤50
|
|
1.29
|
±0.0127
|
0.0193×2
|
≤63
|
|
1.151
|
±0.0127
|
0.0172×2
|
≤79
|
|
1.024
|
±0.01
|
0.0152×2
|
≤100.5
|
|
0.813
|
±0.0076
|
0.0121×2
|
≤160
|
|
0.724
|
±0.0076
|
0.0109×2
|
≤202
|
|
0.643
|
±0.0076
|
0.0096×2
|
≤258
|
|
0.574
|
±0.0076
|
0.0085×2
|
≤325
|
|
0.511
|
±0.0076
|
0.0076×2
|
≤410
|
|
Tensile Strength(MPa) --- Hard drawn(min) 827MPa , Annealed(max) 380MPa
|
|
Elongation (%) --- Hard drawn(min) 1.0% , Annealed(min) 8%
|
CCS25%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Min Thickness(mm)
|
/km
|
|
1.67
|
±0.015
|
0.0459×2
|
≤32
|
|
1.628
|
±0.015
|
0.0448×2
|
≤33.5
|
|
1.45
|
±0.015
|
0.0398×2
|
≤42
|
|
1.29
|
±0.0127
|
0.0354×2
|
≤53
|
|
1.151
|
±0.0127
|
0.0314×2
|
≤67
|
|
1.024
|
±0.01
|
0.0281×2
|
≤85
|
|
0.813
|
±0.0076
|
0.0222×2
|
≤136
|
|
0.724
|
±0.0076
|
0.0196×2
|
≤172
|
|
0.643
|
±0.0076
|
0.0172×2
|
≤218
|
|
0.574
|
±0.0076
|
0.0153×2
|
≤273
|
|
0.511
|
±0.0076
|
0.0135×2
|
≤344
|
|
0.50
|
±0.0076
|
0.0132×2
|
≤358
|
|
Tensile Strength(MPa) --- Hard drawn(min) 827MPa , Annealed(max) 380MPa
|
|
Elongation (%) --- Hard drawn(min) 1.0% , Annealed(min) 8%
|
CCS30%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Min Thickness(mm)
|
/km
|
|
1.67
|
±0.015
|
0.072×2
|
≤27.0
|
|
1.628
|
±0.015
|
0.070×2
|
≤28.5
|
|
1.45
|
±0.015
|
0.062×2
|
≤36.2
|
|
1.29
|
±0.0127
|
0.055×2
|
≤45.5
|
|
1.151
|
±0.0127
|
0.049×2
|
≤57.2
|
|
1.024
|
±0.01
|
0.044×2
|
≤72.5
|
|
0.813
|
±0.0076
|
0.035×2
|
≤115
|
|
0.724
|
±0.0076
|
0.031×2
|
≤145
|
|
0.643
|
±0.0076
|
0.027×2
|
≤185
|
|
0.574
|
±0.0076
|
0.024×2
|
≤232
|
|
0.511
|
±0.0076
|
0.022×2
|
≤292
|
|
0.40
|
±0.0076
|
0.017×2
|
≤473
|
|
Tensile Strength(MPa) --- Hard drawn(min) 827MPa , Annealed(max) 380MPa
|
|
Elongation (%) --- Hard drawn(min) 1.0% , Annealed(min) 8%
|
CCS40%IACS
|
Size(mm)
|
Copper Thickness(mm)
|
Dc Resistance
|
|
Standard Diameter
|
Error Margin
|
Min Thickness(mm)
|
Error Margin
|
/km
|
|
1.628
|
±0.015
|
0.298
|
+0.05
-0.01
|
20.95
|
|
1.45
|
±0.015
|
0.265
|
+0.05
-0.01
|
26.48
|
|
1.29
|
±0.0127
|
0.235
|
+0.05
-0.01
|
33.45
|
|
1.151
|
±0.0127
|
0.21
|
+0.04
-0.01
|
42.5
|
|
1.024
|
±0.001
|
0.18
|
+0.04
-0.01
|
53.5
|
|
0.813
|
±0.0076
|
0.145
|
+0.035
-0.008
|
85
|
|
0.724
|
±0.0076
|
0.13
|
+0.03
-0.007
|
108
|
|
0.643
|
±0.0076
|
0.115
|
+0.025
-0.006
|
137
|
|
0.574
|
±0.0076
|
0.10
|
+0.025
-0.005
|
172.5
|
|
0.511
|
±0.0076
|
0.093
|
+0.002
-0.004
|
215
|
|
Tensile Strength(MPa) --- Hard drawn(min) 643MPa , Annealed(max) 338MPa
|
|
Elongation(%)--- Hard drawn(min) 1.5% , Annealed(min) 8%
|
High Tensile Strength CCS Wire(HCCS)
|
NO.
|
Diameter（mm)
|
Conductivity（%）
|
Min
Breaking Force (kg)
|
Tensile Strength（kg/mm2)
|
Elongation（%）
|
|
General
|
ASTMB 452
|
BS 4087
|
General
|
ASTMB 452
|
BS 4087
|
General
|
ASTMB 452
|
|
1
|
2.4
|
20 25 30
|
203.6-271.4
|
488.8
|
/
|
45-60
|
89.3
|
/
|
1.0
|
1.0
|
|
40
|
203.6-271.4
|
423.1
|
/
|
45-60
|
77.3
|
/
|
1.0
|
1.0
|
|
2
|
1.83
|
20 25 30
|
118.4-160
|
235.0
|
283.0
|
45-60
|
89.3
|
107.6
|
1.0
|
1.0
|
|
40
|
118.4-160
|
203.0
|
254.0
|
45-60
|
77.3
|
96.47
|
1.0
|
1.0
|
|
3
|
1.63
|
20 25 30
|
93.9-125
|
186.0
|
223.0
|
45-60
|
89.3
|
106.9
|
1.0
|
1.0
|
|
40
|
93.9-125
|
161.3
|
204.0
|
45-60
|
77.3
|
97.76
|
1.0
|
1.0
|
|
4
|
1.45
|
20 25 30
|
74.3-99.0
|
147.3
|
178.2
|
45-60
|
89.3
|
108.0
|
1.0
|
1.0
|
|
40
|
74.3-99.0
|
127.5
|
162.5
|
45-60
|
77.3
|
98.5
|
1.0
|
1.0
|
|
5
|
1.29
|
20 25 30
|
58.8-78.4
|
116.7
|
142.5
|
45-60
|
89.3
|
109.0
|
1.0
|
1.0
|
|
40
|
58.8-78.4
|
101.0
|
128.0
|
45-60
|
77.3
|
98.38
|
1.0
|
1.0
|
|
6
|
1.15
|
20 25 30
|
46.7-62.4
|
92.9
|
114.1
|
45-60
|
89.3
|
109.7
|
1.0
|
1.0
|
|
40
|
46.7-62.4
|
80.4
|
103.9
|
45-60
|
77.3
|
99.93
|
1.0
|
1.0
|
|
7
|
1.02
|
20 25 30
|
36.7-49.0
|
73.0
|
87.0
|
45-60
|
89.3
|
106.5
|
1.0
|
1.0
|
|
40
|
36.7-49.0
|
63.2
|
80.0
|
45-60
|
77.3
|
97.9
|
1.0
|
1.0
|
|
8
|
0.912
|
20 25 30
|
29.4-39.2
|
58.3
|
71.3
|
45-60
|
89.3
|
109.2
|
1.0
|
1.0
|
|
40
|
29.4-39.2
|
50.0
|
65.2
|
45-60
|
77.3
|
99.94
|
1.0
|
1.0
|
|
9
|
0.813
|
20 25 30
|
23.4-30.9
|
46.0
|
56.4
|
45-60
|
89.3
|
108.7
|
1.0
|
1.0
|
|
40
|
23.4-30.9
|
40.2
|
51.36
|
45-60
|
77.3
|
98.97
|
1.0
|
1.0
|
|
10
|
0.742
|
20 25 30
|
18.5-24.7
|
37.2
|
45.3
|
45-60
|
89.3
|
108.6
|
1.0
|
1.0
|
|
40
|
18.5-24.7
|
32.2
|
41.1
|
45-60
|
77.3
|
98.5
|
1.0
|
1.0
|
|
11
|
0.643
|
20 25 30
|
14.6-19.5
|
29.0
|
34.5
|
45-60
|
89.3
|
106.1
|
1.0
|
1.0
|
|
40
|
14.6-19.5
|
25.0
|
32.25
|
45-60
|
77.3
|
99.23
|
1.0
|
1.0
|
|
12
|
0.574
|
20 25 30
|
11.6-15.5
|
23.1
|
27.3
|
45-60
|
89.3
|
105.6
|
1.0
|
1.0
|
|
40
|
11.6-15.5
|
20.0
|
25.2
|
45-60
|
77.3
|
97.44
|
1.0
|
1.0
|
|
13
|
0.510
|
20 25 30
|
9.2-12.2
|
18.2
|
22.0
|
45-60
|
89.3
|
107.7
|
1.0
|
1.0
|
|
40
|
9.2-12.2
|
15.7
|
20.0
|
45-60
|
77.3
|
97.9
|
1.0
|
1.0
|
|
14
|
0.445
|
20 25 30
|
9.33-7.0
|
13.89
|
/
|
45-60
|
89.3
|
/
|
1.0
|
1.0
|
|
40
|
9.33-7.0
|
12.0
|
/
|
45-60
|
77.3
|
/
|
1.0
|
1.0
|
|
15
|
0.405
|
20 25 30
|
5.8-7.73
|
11.5
|
/
|
45-60
|
89.3
|
/
|
1.0
|
1.0
|
|
40
|
5.8-7.73
|
9.9
|
/
|
45-60
|
77.3
|
/
|
1.0
|
1.0
|
Tinned Copper Clad Aluminum(TCCA/TCCAM)
Physical & Mechanical Properties of Tinned Copper Clad Aluminum Wire (TCCA Wire)
|
SIZE
(mm)
|
Section
(mm2)
|
Resistance≤Ω/m(20℃)
|
Tensile Strength
（≥Mpa）
|
Elongation
（≥%）
|
|
Standard Diameter
|
Tolerance
|
Tinned
|
|
0.080
|
±0.002
|
0.0050
|
5.350
|
172.0
|
6.0
|
|
0.100
|
±0.002
|
0.0079
|
3.494
|
172.0
|
6.0
|
|
0.110
|
±0.002
|
0.0095
|
2.380
|
172.0
|
6.0
|
|
0.120
|
±0.002
|
0.0113
|
2.360
|
172.0
|
8.0
|
|
0.140
|
±0.003
|
0.0154
|
1.738
|
172.0
|
8.0
|
|
0.150
|
±0.003
|
0.0177
|
1.514
|
172.0
|
10.0
|
|
0.160
|
±0.003
|
0.0201
|
1.331
|
172.0
|
12.0
|
|
0.180
|
±0.003
|
0.0254
|
1.052
|
172.0
|
12.0
|
|
0.190
|
±0.003
|
0.0284
|
0.944
|
172.0
|
12.0
|
|
0.200
|
±0.003
|
0.0314
|
0.852
|
172.0
|
15.0
|
|
0.250
|
±0.003
|
0.0491
|
0.545
|
172.0
|
15.0
|
|
0.254
|
±0.003
|
0.0507
|
0.520
|
172.0
|
15.0
|
|
0.300
|
±0.003
|
0.0707
|
0.379
|
172.0
|
15.0
|
|
0.320
|
±0.003
|
0.0804
|
0.333
|
172.0
|
15.0
|
|
0.350
|
±0.006
|
0.0962
|
0.278
|
172.0
|
18.0
|
|
0.360
|
±0.006
|
0.1018
|
0.258
|
172.0
|
18.0
|
|
0.400
|
±0.006
|
0.1257
|
0.213
|
172.0
|
18.0
|
|
0.450
|
±0.006
|
0.1590
|
0.168
|
138.0
|
18.0
|
|
0.500
|
±0.006
|
0.1964
|
0.140
|
138.0
|
20.0
|
|
0.550
|
±0.006
|
0.1968
|
0.120
|
138.0
|
20.0
|
|
0.600
|
±0.006
|
0.2827
|
0.095
|
138.0
|
20.0
|
|
0.650
|
±0.006
|
0.3318
|
0.081
|
138.0
|
20.0
|
|
0.700
|
±0.006
|
0.3848
|
0.070
|
138.0
|
23.0
|
|
0.750
|
±0.006
|
0.4418
|
0.062
|
138.0
|
23.0
|
|
0.800
|
±0.006
|
0.5027
|
0.054
|
138.0
|
25.0
|
|
0.900
|
±0.006
|
0.6362
|
0.039
|
138.0
|
25.0
|
|
1.000
|
±0.006
|
0.7854
|
0.034
|
138.0
|
25.0
|
|
1.020
|
±0.008
|
0.8171
|
0.033
|
138.0
|
25.0
|
|
1.300
|
±0.008
|
1.3273
|
0.030
|
138.0
|
25.0
|
|
1.500
|
±0.008
|
1.7672
|
0.028
|
138.0
|
25.0
|
|
1.630
|
±0.008
|
2.0867
|
0.020
|
138.0
|
25.0
|
|
1.700
|
±0.008
|
2.2698
|
0.019
|
138.0
|
25.0
|
|
1.810
|
±0.008
|
2.5730
|
0.016
|
138.0
|
25.0
|
|
1.950
|
±0.008
|
2.9865
|
0.011
|
138.0
|
25.0
|
|
2.000
|
±0.008
|
3.1416
|
0.008
|
138.0
|
25.0
|
Tinned Copper Clad Steel Wie (TCCS Wire, CP Wire)
Product Summary & Specification:
|
Diameter
|
Tensile Strength (Mpa)
|
Elongation (%)
|
Minimum Bending times(times*360°)
|
|
A
|
AH
|
H
|
A
|
AH
|
H
|
A
|
AH
|
H
|
|
Load(g)
|
Times
|
Load(g)
|
Times
|
Load(g)
|
Times
|
|
0.40
|
≤350
|
350-450
|
≥450
|
≥10
|
≥4
|
---
|
250
|
≥6
|
250
|
≥4
|
250
|
≥2
|
|
0.45
|
|
0.50
|
500
|
500
|
500
|
|
0.60
|
|
0.80
|
1000
|
1000
|
1000
|
|
1.00
|
|
1.20
|
|
Other specifications can be designed according to your special request
|
Physical & Mechanical Properties of Tinned Copper Clad Steel Wire (CP):
|
Diameter
|
Tolerance
|
Tensile Strength
|
Elongation
|
Minimum Bending times
|
Load
|
|
Soft
|
Half Hard
|
Hard
|
Soft
|
Soft
|
Half Hard
|
Hard
|
g
|
|
mm
|
±mm
|
kg/mm2
|
kg/mm2
|
kg/mm2
|
%
|
times*360°
|
times*360°
|
times*360°
|
|
1.20
|
0.020
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
1000
|
|
1.10
|
0.020
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
1000
|
|
1.00
|
0.020
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
1000
|
|
0.90
|
0.020
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
500
|
|
0.80
|
0.010
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
500
|
|
0.70
|
0.010
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
500
|
|
0.65
|
0.010
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
500
|
|
0.60
|
0.010
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
500
|
|
0.55
|
0.005
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
250
|
|
0.50
|
0.005
|
≤ 45
|
45-62
|
60-120
|
≥12
|
3
|
4
|
4
|
250
|
|
0.45
|
0.005
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
250
|
|
0.40
|
0.005
|
≤ 45
|
45-62
|
60-120
|
≥12
|
6
|
4
|
4
|
250
|
|
0.24
|
0.005
|
≤40
|
45-62
|
60-120
|
≥12
|
8
|
4
|
4
|
200
|
|
0.16
|
0.005
|
≤40
|
45-62
|
60-120
|
≥12
|
8
|
4
|
4
|
200
|
|
0.12
|
0.005
|
≤40
|
45-62
|
60-120
|
≥12
|
8
|
4
|
4
|
200
|
|
0.10
|
0.005
|
≤40
|
45-62
|
60-120
|
≥12
|
8
|
4
|
4
|
200
|
Silver Plated Copper Clad Steel Wire/Silver plated CCS wire(SCCS)
The characteristic of Silver Plated CCS Wire
（
SCCS
）
:
|
Diameter(mm)
|
Tolerance (mm)
|
Unit Weight
m/kg
|
SilverThickness(um)
|
Elongation(%) 250mm
|
|
A
|
H
|
|
0.70
|
±1%
|
320
|
8.0
|
15
|
1.0
|
|
0.65
|
370
|
8.0
|
|
0.60
|
440
|
7.0
|
|
0.50
|
635
|
6.0
|
10
|
|
0.45
|
785
|
5.5
|
|
0.40
|
995
|
5.0
|
|
0.35
|
1300
|
4.0
|
|
0.30
|
1770
|
4.0
|
|
0.28
|
2030
|
3.5
|
|
0.25
|
±0.003
|
2545
|
3.0
|
|
0.23
|
3010
|
2.5
|
|
0.20
|
3980
|
2.5
|
|
0.18
|
4915
|
2.0
|
|
0.16
|
6220
|
2.0
|
|
0.15
|
7075
|
2.0
|
|
0.13
|
9420
|
1.5
|
|
0.12
|
11055
|
1.5
|
|
0.10
|
15300
|
1.0
|
Aluminum Clad Steel (ACS)
PRODUCT SPECIFICATIONS
ALUMINUM CLAD STEEL WIRE
IEC 61232-1993
Q/UNIELECT A001
ASTM B415
ASTM B502
Application of ACS Wire
Manufacture of bare overhead conductor, OPGW, ground wire, messenger wire, guy wire, formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware.
IEC 61232-1993
|
Class
|
Nominal diameter (mm)
|
Minimum
Tensile(Mpa)
|
Load@1%
Extension
Min.(Mpa)
|
Max.Resistance
@20℃
（n Ω.m）
|
Conductivity
|
|
Over
|
Up to and
including
|
|
20SA
Type A
|
1.80
|
3.25
|
1340
|
1200
|
84.80
|
20.3%IACS
|
|
3.25
|
3.45
|
1310
|
1180
|
|
3.45
|
3.65
|
1270
|
1140
|
|
3.65
|
3.95
|
1250
|
1100
|
|
3.95
|
4.10
|
1210
|
1100
|
|
4.10
|
4.40
|
1180
|
1070
|
|
4.40
|
4.60
|
1140
|
1030
|
|
4.60
|
4.75
|
1100
|
1000
|
|
4.75
|
5.50
|
1070
|
1000
|
|
20SA
Type B
|
1.80
|
5.50
|
1320
|
1100
|
|
27SA
|
2.50
|
5.00
|
1080
|
800
|
63.86
|
27%IACS
|
|
30SA
|
2.50
|
5.00
|
880
|
650
|
57.47
|
30%IACS
|
|
40SA
|
2.80
|
5.00
|
680
|
500
|
43.10
|
40%IACS
|
Minimum elongation: 1.5% at fracture, or 1.0% after fracture, gauge length 250mm.
Q/UNIELECT A001
-2007
|
Grade
|
Type
|
Nominal diameter (mm)
|
Minimum
Tensile
Min.(Mpa)
|
Min.Resistance
@20℃
（n Ω.m）
|
Max.Resistance
@20℃
（n Ω.m
|
|
Over
|
Up to and
including
|
|
LB14
|
|
2.25
|
3.00
|
1590
|
1410
|
123.1514%IACS
|
|
3.00
|
3.50
|
1550
|
1380
|
|
3.50
|
4.75
|
1520
|
1340
|
|
4.75
|
5.50
|
1500
|
1270
|
|
LB20
|
A
|
1.50
|
3.25
|
1340
|
1200
|
84.8020.3%IACS
|
|
3.25
|
3.45
|
1310
|
1180
|
|
3.45
|
3.65
|
1270
|
1140
|
|
3.65
|
3.95
|
1250
|
1100
|
|
3.95
|
4.10
|
1210
|
1100
|
|
4.10
|
4.40
|
1180
|
1070
|
|
4.40
|
4.60
|
1140
|
1030
|
|
4.60
|
4.75
|
1100
|
1000
|
|
4.75
|
5.50
|
1070
|
1000
|
|
B
|
1.50
|
5.50
|
1320
|
1100
|
|
LB23
|
-
|
2.50
|
5.00
|
1220
|
980
|
74.9623%IACS
|
|
LB27
|
-
|
2.50
|
5.00
|
1080
|
800
|
63.8627%IACS
|
|
LB30
|
-
|
2.50
|
5.00
|
880
|
650
|
57.4730%IACS
|
|
LB35
|
-
|
2.50
|
5.00
|
810
|
590
|
49.2635%IACS
|
|
LB40
|
-
|
2.50
|
5.00
|
680
|
500
|
43.1040%IACS
|
Physical constant (Apply for IEC 61232 & Q/UNIELECT A001 )
| Conductivity(%IACS)
|
14
|
20.3
Type A
|
20.3
Type B
|
23
|
27
|
30
|
35
|
40
|
|
Final modulus of elasticity (practical) GPa
|
170
|
162
|
155
|
149
|
140
|
132
|
122
|
109
|
|
Coefficient of linear
Expansion (K-1)x10-6
|
12.0
|
13.0
|
12.6
|
12.9
|
13.4
|
13.8
|
14.5
|
15.5
|
|
Constant-mass temperature coefficient of resistance (a) (K-1)
|
0.0034
|
0.0036
|
0.0036
|
0.0036
|
0.0036
|
0.0038
|
0.0039
|
0.0040
|
ASTM B 415-02
1.Tensile Requirement
|
Nominal Diameter (in./mm)
|
Size,
(AWG)
|
20.3%
|
27%
|
30%
|
40%
|
|
psi
|
MPa
|
psi
|
MPa
|
psi
|
MPa
|
psi
|
MPa
|
|
0.2043
|
5.19
|
4
|
155 000
|
1070
|
125 000
|
862
|
102 000
|
703
|
80 000
|
552
|
|
0.1880
|
4.78
|
-
|
160 000
|
1100
|
129 000
|
889
|
106 000
|
731
|
84 000
|
579
|
|
0.1819
|
4.62
|
5
|
165 000
|
1140
|
133 000
|
917
|
110 000
|
758
|
88 000
|
607
|
|
0.1729
|
4.39
|
-
|
170 000
|
1170
|
137 000
|
945
|
114 000
|
786
|
92 000
|
634
|
|
0.1620
|
4.11
|
6
|
175 000
|
1210
|
141 000
|
972
|
114 000
|
786
|
96 000
|
662
|
|
0.1549
|
3.93
|
-
|
180 000
|
1240
|
145 000
|
1000
|
118 000
|
814
|
96 000
|
662
|
|
0.1443
|
3.67
|
7
|
185 000
|
1280
|
150 000
|
1034
|
122 000
|
841
|
98 000
|
676
|
|
0.1369
|
3.48
|
-
|
190 000
|
1310
|
154 000
|
1062
|
126 000
|
869
|
98 000
|
676
|
|
0.1285
|
3.26
|
8
|
195 000
|
1340
|
156 000
|
1076
|
128 000
|
883
|
99 500
|
686
|
|
0.1144
|
2.91
|
9
|
195 000
|
1340
|
156 000
|
1076
|
128 000
|
883
|
99 500
|
686
|
|
0.1019
|
2.59
|
10
|
195 000
|
1340
|
156 000
|
1076
|
128 000
|
883
|
99 500
|
686
|
|
0.0907
|
2.30
|
11
|
195 000
|
1340
|
156 000
|
1076
|
128 000
|
883
|
99 500
|
686
|
|
0.0808
|
2.05
|
12
|
195 000
|
1340
|
156 000
|
1076
|
128 000
|
883
|
99 500
|
686
|
2, Physical Constants
|
%
Conductivity
|
Density at
20C
|
Modulus of
Elasticity psi
|
Coef. of Linear
Exp.
|
Temperature
Coef. of Resistance
|
|
20.3
|
0.2381 lb/in3
(6.59 g/cm3 )
|
23.5X1000000
(162 GPa)
|
0.0000072/°F
(0.0000126/℃)
|
0.0020/°F
(0.0036/℃)
|
|
27
|
0.2135 lb/in3
(5.91 g/cm3 )
|
20.3X1000000
(140 GPa)
|
0.0000077/°F
(0.0000134/℃)
|
0.0020/°F
(0.0036/℃)
|
|
30
|
0.2027 lb/in3
(5.61 g/cm3 )
|
19.1X1000000
(132 GPa)
|
0.0000079/°F
(0.0000138/℃)
|
0.0021/°F
(0.0038/℃)
|
|
40
|
0.1676 lb/in 3
(4.64 g/cm3 )
|
15.8X1000000
(109 GPa)
|
0.0000089/°F
(0.0000155/℃)
|
0.0022/°F
(0.0040/℃)
|
3, Wire Diameter Variations
|
Specified Diameter, in.
|
Permissible Variations in Specified Diameter, plus and minus
|
|
0.2043 to 0.1000,incl
|
1.5%
|
|
0.1000 to 0.0800,incl
|
0.0015 in. (0.038mm)
|
4, Aluminum Thickness and Resistance
|
Conductivity（%）
|
Nominal Wire Radius（%）
|
D.C. Resistance at 20℃(Ω. cmil/ft)
|
|
20.3
|
10
|
51.01
|
|
27
|
14
|
38.41
|
|
30
|
15
|
34.57
|
|
40
|
25
|
25.93
|
ASTM B 502-02
Aluminum-Clad Steel Core Wire for Aluminum Conductors,
Aluminum-Clad Steel Reinforced
1. Tensile Requirements
|
Nominal Diameter
in.(mm)
|
Stress at 1%
Extension min.
psi(MPa)
|
Ultimate Tensile
Strength min.
psi(MPa)
|
Elongation min
%,10in.
(250mm)
|
|
0.0770 to 0.1289
(1.956 to 3.274).,incl
|
175 000(1206)
|
195 000(1344)
|
1.5
|
|
0.1290 to 0.1396
(3.275 to 3.477).,incl
|
170 000(1172)
|
190 000(1310)
|
1.5
|
|
0.1370 to 0.1443
(3.478 to 3.665).,incl
|
165 000(1137)
|
185 000(1275)
|
1.5
|
|
0.1444 to 0.1549
(3.666 to 3.934).,incl
|
160 000(1103)
|
180 000(1241)
|
1.5
|
|
0.1550 to 0.1620
(3.935 to 4.115).,incl
|
160 000(1103)
|
175 000(1206)
|
1.5
|
|
0.1621 to 0.1729
(4.116 to 4.392).,incl
|
155 000(1068)
|
170 000(1172)
|
1.5
|
|
0.1730 to 0.1819
(4.393 to 4.620).,incl
|
150 000(1034)
|
165 000(1137)
|
1.5
|
|
0.1820 to 0.1880
(4.621 to 4.775).,incl
|
145 000(1100)
|
160 000(1103)
|
1.5
|
2.Wire Diameter Variations
|
Nominal Diameter
in.(mm)
|
Permissible Variations in
Nominal Diameter
|
|
0.0770 to 0.0999
(1.956 to 2.537),incl
|
0.0015in,(0.038mm)
|
|
0.1000 to 0.1880
(2.538 to 4.775),incl
|
1.5
|
Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
ASTM B416 (Inch-Pound Unit)
|
Size
|
Number and Diameter of individual Wires
|
Conductor Diameter
|
Min.Rated Breaking Strength
|
Mass per unit length
|
Max. Resistance @20℃
|
Nominal Cross Section
|
|
Designation
|
Nos
|
in.
|
in.
|
lbs
|
lb/1000ft
|
ohm/1000ft
|
cmils
|
inch2
|
|
37No.5AWG
|
37
|
0.1819
|
1.27
|
142800
|
2802
|
0.04247
|
1225000
|
0.9619
|
|
37No.6AWG
|
37
|
0.162
|
1.13
|
120200
|
2222
|
0.05356
|
971300
|
0.7629
|
|
37No.7AWG
|
37
|
0.1443
|
1.01
|
100700
|
1762
|
0.06754
|
770300
|
0.6050
|
|
37No.8AWG
|
37
|
0.1285
|
0.899
|
84200
|
1398
|
0.08516
|
610900
|
0.4698
|
|
37No.9AWG
|
37
|
0.1144
|
0.801
|
66770
|
1108
|
0.1074
|
484400
|
0.3805
|
|
37No.10AWG
|
37
|
0.1019
|
0.713
|
52950
|
879.0
|
0.1354
|
385200
|
0.1037
|
|
19No.5AWG
|
19
|
0.1819
|
0.91
|
73350
|
1430
|
0.08224
|
628900
|
0.4940
|
|
19No.6AWG
|
19
|
0.162
|
0.81
|
61700
|
1134
|
0.1037
|
498800
|
0.3917
|
|
19No.7AWG
|
19
|
0.1443
|
0.721
|
51730
|
899.5
|
0.1308
|
395500
|
0.3107
|
|
19No.8AWG
|
19
|
0.1285
|
0.642
|
43240
|
713.5
|
0.1649
|
313700
|
0.2464
|
|
19No.9AWG
|
19
|
0.1144
|
0.572
|
34290
|
565.8
|
0.2079
|
248800
|
0.1954
|
|
19No.10AWG
|
19
|
0.1019
|
0.509
|
27190
|
448.7
|
0.2622
|
197300
|
0.1549
|
|
7No.5AWG
|
7
|
0.1819
|
0.546
|
27030
|
524.9
|
0.2264
|
231700
|
0.1820
|
|
7No.6AWG
|
7
|
0.162
|
0.486
|
22730
|
416.3
|
0.2803
|
183800
|
0.1443
|
|
7No.7AWG
|
7
|
0.1443
|
0.433
|
19060
|
330.0
|
0.3535
|
145700
|
0.1145
|
|
7No.8AWG
|
7
|
0.1285
|
0.385
|
15930
|
261.8
|
0.4458
|
115600
|
0.09077
|
|
7No.9AWG
|
7
|
0.1144
|
0.343
|
12630
|
207.6
|
0.5621
|
91650
|
0.07198
|
|
7No.10AWG
|
7
|
0.1019
|
0.306
|
10020
|
164.7
|
0.7088
|
72680
|
0.05708
|
|
7No.11AWG
|
7
|
0.0907
|
0.272
|
7945
|
130.6
|
0.8938
|
57590
|
0.04523
|
|
7No.12AWG
|
7
|
0.0808
|
0.242
|
6301
|
103.6
|
1.127
|
45710
|
0.03590
|
|
3No.5AWG
|
3
|
0.1819
|
0.392
|
12230
|
224.5
|
0.5177
|
99310
|
0.07800
|
|
3No.6AWG
|
3
|
0.162
|
0.349
|
10280
|
178.1
|
0.6528
|
78750
|
0.06185
|
|
3No.7AWG
|
3
|
0.1443
|
0.311
|
8621
|
141.2
|
0.8232
|
62450
|
0.04905
|
|
3No.8AWG
|
3
|
0.1285
|
0.277
|
7206
|
112.0
|
1.038
|
49530
|
0.03890
|
|
3No.9AWG
|
3
|
0.1144
|
0.247
|
5715
|
88.81
|
1.309
|
39280
|
0.03085
|
|
3No.10AWG
|
3
|
0.1019
|
0.22
|
4532
|
70.43
|
1.651
|
31150
|
0.02446
|
Coefficient of Linear expansion 0.0000072/F°
Final modulus of elasticity 23 000 000psi
Temperature coefficient of resistance 0.0020/F°
ASTM B416 (SI Unit )
|
Size
|
Number and Diameter of individual Wires
|
Conductor Diameter
|
Min.Rated Breaking Strength
|
Mass per unit length
|
Max. Resistance @20℃
|
Nominal Cross Section
|
|
Designation
|
Nos
|
mm
|
mm
|
KN
|
Kg/km
|
ohm/km
|
mm2
|
|
37No.5AWG
|
37
|
4.62
|
32.26
|
634.8
|
4169
|
0.1393
|
620.6
|
|
37No.6AWG
|
37
|
4.11
|
28.70
|
534.3
|
3306
|
0.1757
|
492.2
|
|
37No.7AWG
|
37
|
3.67
|
25.65
|
447.6
|
2622
|
0.2216
|
390.3
|
|
37No.8AWG
|
37
|
3.26
|
22.83
|
374.3
|
2080
|
0.2794
|
309.5
|
|
37No.9AWG
|
37
|
2.91
|
20.35
|
296.8
|
1649
|
0.3524
|
245.5
|
|
37No.10AWG
|
37
|
2.59
|
18.11
|
235.4
|
1308
|
0.4442
|
194.6
|
|
19No.5AWG
|
19
|
4.62
|
23.11
|
326.1
|
2128
|
0.2698
|
318.7
|
|
19No.6AWG
|
19
|
4.11
|
20.57
|
274.3
|
1687
|
0.3402
|
252.7
|
|
19No.7AWG
|
19
|
3.67
|
18.31
|
230.0
|
1338
|
0.4291
|
200.5
|
|
19No.8AWG
|
19
|
3.26
|
16.31
|
192.2
|
1062
|
0.5410
|
159.0
|
|
19No.9AWG
|
19
|
2.91
|
14.53
|
152.4
|
841.9
|
0.6821
|
126.1
|
|
19No.10AWG
|
19
|
2.59
|
12.93
|
120.9
|
667.7
|
0.8602
|
99.94
|
|
7No.5AWG
|
7
|
4.62
|
13.87
|
120.2
|
781.1
|
0.7428
|
117.4
|
|
7No.6AWG
|
7
|
4.11
|
12.34
|
101.0
|
619.5
|
0.9196
|
93.10
|
|
7No.7AWG
|
7
|
3.67
|
11.00
|
84.73
|
491.0
|
1.1598
|
73.87
|
|
7No.8AWG
|
7
|
3.26
|
9,78
|
70.81
|
389.6
|
1.4626
|
58.56
|
|
7No.9AWG
|
7
|
2.91
|
8.71
|
56.14
|
308.9
|
1.8441
|
46.44
|
|
7No.10AWG
|
7
|
2.59
|
7.77
|
44.54
|
245.1
|
2.3254
|
36.83
|
|
7No.11AWG
|
7
|
2.30
|
6.91
|
35.32
|
194.3
|
2.9324
|
29.18
|
|
7No.12AWG
|
7
|
2.05
|
6.15
|
28.01
|
154.2
|
3.6975
|
23.16
|
|
3No.5AWG
|
3
|
4.62
|
9.96
|
54.36
|
334.1
|
1.6985
|
50.32
|
|
3No.6AWG
|
3
|
4.11
|
8.86
|
45.70
|
265.0
|
2.1417
|
39.90
|
|
3No.7AWG
|
3
|
3.67
|
7.90
|
38.32
|
210.1
|
2.7008
|
31.65
|
|
3No.8AWG
|
3
|
3.26
|
7.04
|
32.03
|
166.7
|
3.4005
|
25.10
|
|
3No.9AWG
|
3
|
2.91
|
6.27
|
25.40
|
132.1
|
4.2946
|
19.90
|
|
3No.10AWG
|
3
|
2.59
|
5.59
|
20.15
|
104.8
|
5.4166
|
15.78
|
Coefficient of Linear expansion 0.0000126/℃
Final modulus of elasticity 160GPa
Temperature coefficient of resistance 0.0036/℃
|
|
|
|
|
|
|
|
|
